Wire Wound Ceramic Inductor

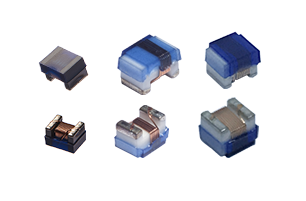

WIV(Automotive Grade)

FEATURES

?Monolithic inorganic material construction.

?Closed magnetic circuit avoids crosstalk.

?Shapes and dimensions follow E.I.A. spec and available in various sizes.

?Excellent solder ability and heat resistance

?AEC-Q200 qualified

?Lead-free reflow soldering as referenced in JEDEC J-STD 020D and RoHS compliant

?Operating temperature:-55°C to +125°C


APPLICATION

?Filter switches

?Oscillators

?T- or π-Filter

?Automotive equipment



WIV
Product List
PictureSerial No.Dimension(mm)

Inductance(μH)

Temperature

Rise Current(mA)

DC Resistance(Ω)

Self Resonant

Frequency(MHz)

Download
WIV1608HF.pngWIV16081.8*1.2*1.20.047~10.0180~14000.075~4.825~1500下载
1.pngWIV20122.4*1.6*1.40.47~33.0145~7500.2~4.3415~720下载
2.pngWIV25202.9*2.5*2.11.0~33.0236~10000.13~2.4715~345下载
1676429258489663.pngWIV32253.6*2.8*2.61.0~68076~12000.12~222.3~290下载
