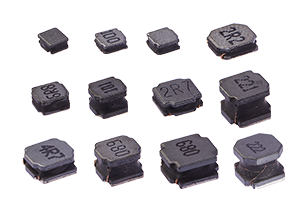

磁胶电感
NRSE(一般用)
FEATURES
?Magnetic resin for higher current and semi-magnetically shielded
?Different sizes from 2mm to 8mm in square shape
APPLICATION
?DC/DC converter
?LC filter
FEATURES
?Magnetic resin for higher current and semi-magnetically shielded
?Different sizes from 2mm to 8mm in square shape
APPLICATION
?DC/DC converter
?LC filter
NRSE6045-R47N
| 产品图 | 系列号 | 尺寸(mm) | 电感值(μH) | 温升电流(A) | 饱和电流(A) | 直流电阻(mΩ) | 文件下载 |
 | NRSE2016 | 2.0*1.6*1.05 | 0.24~22.0 | 0.36~3.1 | 0.38~4.1 | 33~1400 |  |
| NRSE2510 | 2.5*2.0*1.05 | 0.22~15.0 | 0.5~3.0 | 0.6~4.4 | 26~820 | |
| NRSE2512 | 2.5*2.0*1.25 | 0.24~22.0 | 0.55~4.5 | 0.55~4.8 | 19~1000 | |
 | NRSE3010 | 3.0*3.0*1.0 | 1.0~22.0 | 0.38~1.45 | 0.35~1.4 | 65~930 | |
| NRSE3012 | 3.0*3.0*1.2 | 0.33~47.0 | 0.35~2.9 | 0.27~3.0 | 21~1450 | |
 | NRSE3015 | 3.0*3.0*1.5 | 0.24~47.0 | 0.32~3.5 | 0.35~4.8 | 14~1200 | |
 | NRSE4012 | 4.0*4.0*1.2 | 0.24~47.0 | 0.5~3.3 | 0.45~5.6 | 20~1100 | |
| NRSE4015 | 4.0*4.0*1.65 | 0.50~68.0 | 0.42~4.2 | 0.5~6.3 | 25~1600 | |
| NRSE4018 | 4.0*4.0*1.85 | 0.56~47.0 | 0.5~3.5 | 0.57~5.5 | 18~850 | |
 | NRSE4020 | 4.0*4.0*2.1 | 0.33~68.0 | 0.35~3.3 | 0.60~7.5 | 13~1250 | |
 | NRSE4030 | 4.0*4.0*3.0 | 0.47~470 | 0.20~4.0 | 0.30~7.50 | 11~5500 | |
 | NRSE5020 | 5.0*5.0*2.2 | 0.22~220 | 0.3~8.0 | 0.35~6.0 | 11~2230 | |
 | NRSE5040 | 5.0*5.0*4.0 | 1.0~470 | 0.3~4.9 | 0.4~7.35 | 13~2800 | |
 | NRSE6020 | 6.0*6.0*2.0 | 0.68~68 | 0.8~7.5 | 0.68~3.8 | 15~815 | |
| NRSE6028 | 6.0*6.0*2.8 | 1.0~120 | 0.58~4.6 | 0.62~6.7 | 12~820 | |
 | NRSE6045-R47N | 6.0*6.0*4.2 | 0.47 | 8.6 | 17.0 | 6.8 | |
 | NRSE6045 | 6.0*6.0*4.5 | 0.56~330 | 0.5~6.2 | 0.57~14.5 | 7.5~1851 | |
 | NRSE8040 | 8.0*8.0*4.2 | 0.56~1000 | 0.35~7.6 | 0.4~11.5 | 5~2900 | |
 | NRSE8065 | 8.0*8.0*6.4 | 4.7~2200 | 0.27~4.7 | 0.45~8.5 | 18~5000 | |
